M2TECH - (USA SALES ONLY if no local dealer is active). Advanced High-Resolution PC audio systems and streaming devices. Phono stage preamps, digital to analog converters, power amps and A/D conversion. Word clock, USB/SPDIF adapters and ultra-low noise power supplies. All M2Tech products are designed, engineered and manufactured in Italy.

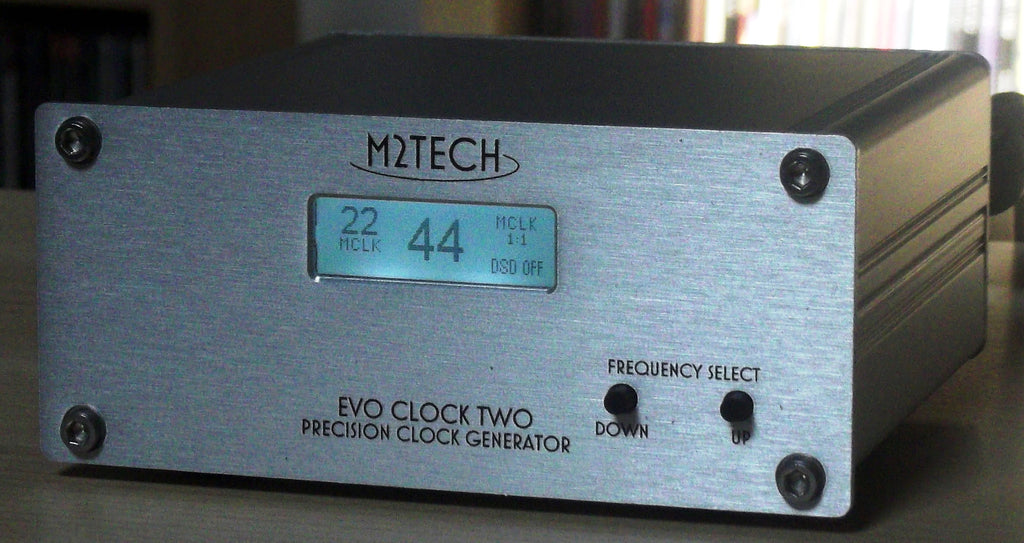

Evo Clock 2 Clock generator VERY LIMITED QUANTITIES. E MAIL FIRST> USA sales ONLY.
Sale

Evo Clock 2 Clock generator VERY LIMITED QUANTITIES. E MAIL FIRST> USA sales ONLY.

$ 799.00


High precision PCM, DXD and DSD256 Word Clock/Master Clock generator

Word clock and master clock generation; lowest phase-noise, high precision, custom made temperature-compensated oscillators; dedicated matched line master clock output for hiFace Evo; matched line option for word clock output; word clock frequency up to 384kHz, plus 5.6448/6._44MHz and __.2896/_2.288MHz super clock; ultra-low noise regulators.

FEATURES

Evo Clock is a cost-effective, high-performance clock generator based on extremely low phase noise, high precision TCXOs, custom made for M2Tech. Two outputs are available: one master clock dedicated to hiFace Evo, capable of 22.5792MHz or 24.576MHz (depending on settings) and delivering 3.3Vpp on 75 Ohms matched line, and a general purpose word clock output with selectable output frequency up to 384kHz, with the option for super clocks _28x and 256x. The latter has a line matching option and can deliver 3.3Vpp on both high impedance and 75 Ohms loads. Ultra-low noise regulators allow for a very clean supply for both oscillators and the conditioning logic, leading to fully exploiting the oscillators performance.
