DETAILS

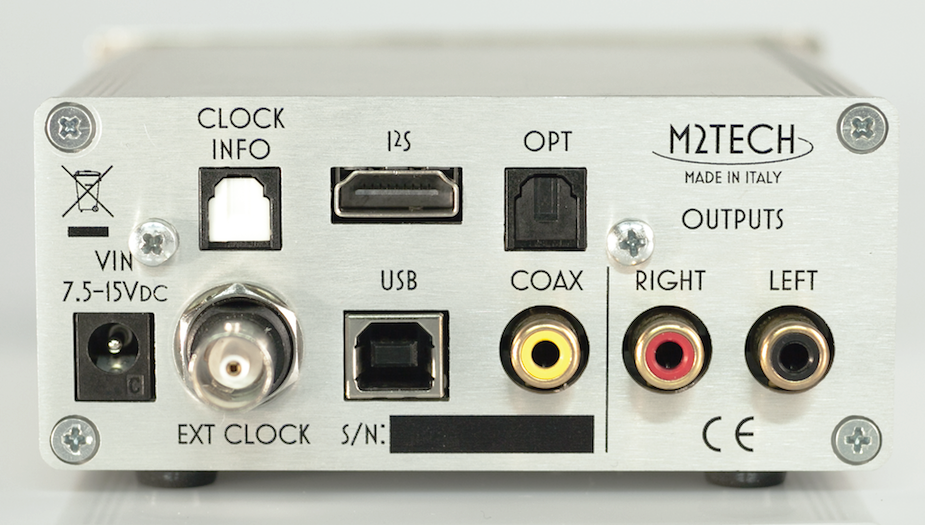

DXD and DSD conversion, 32 bits resolution on USB 2.0 Audio Class compliant port, coaxial and
optical S/PDIF inputs, single-ended outputs on gold-plated RCA females, clock input on BNC
female, clock info output on Toslink™, IR remote control with HID capability, same form factor of
all Evo Two products, can be powered by the USB bus, by the stock 9V wall adaptor or by any
7.5V to 15V power supply, Evo Supply Two recommended.

FEATURES
The Evo DAC Two Plus is a extremely high value-for-money, high performance digital-to-analog
converter capable of converting DXD and DSD when driven by USB.
Its USB 2.0 Audio Class compliant port is natively supported (no driver needed) by OSX and
Linux. An ASIO-compliant driver for Windows is provided.
High precision, low-jitter clocks allow for exceptional detail resolution, maximizing the 32-bit
capability of the ESS Sabre ES9018K2M conversion IC.
Better performance can be achieved by using the Evo Clock Two
connected to the Evo DAC Two Plus clock input.
The Evo DAC Two Plus de-jitter feature allows for exceptionally good performance from coaxial
and optical connections.
Very high performance are obtained by driving the Evo DAC Two Plus by its PS Audio compliant
I²S input.
The Evo DAC Two Plus uses high quality polypropylene capacitors and a low-noise, low distortion
audio opamps in the analog section for best sonic results.
The IR remote control allows for accessing all Evo DAC Two Plus features (volume, balance,
muting, input selection and many other menu settings), as well as taking advantage of the HID
protocol to control the player on the computer without manually accessing the keyboard.
The Evo DAC Two Plus can be powered from the USB bus in budget conscious setups, while
better performance can be obtained with a good power supply such as the Evo Supply Two.
A system composed by the Evo DAC Two Plus, the Evo Supply Two and the Evo Clock Two
makes for a high-end digital audio setup at an affordable price.
